Why Choose a Metering Valve for Precise Flow Control?

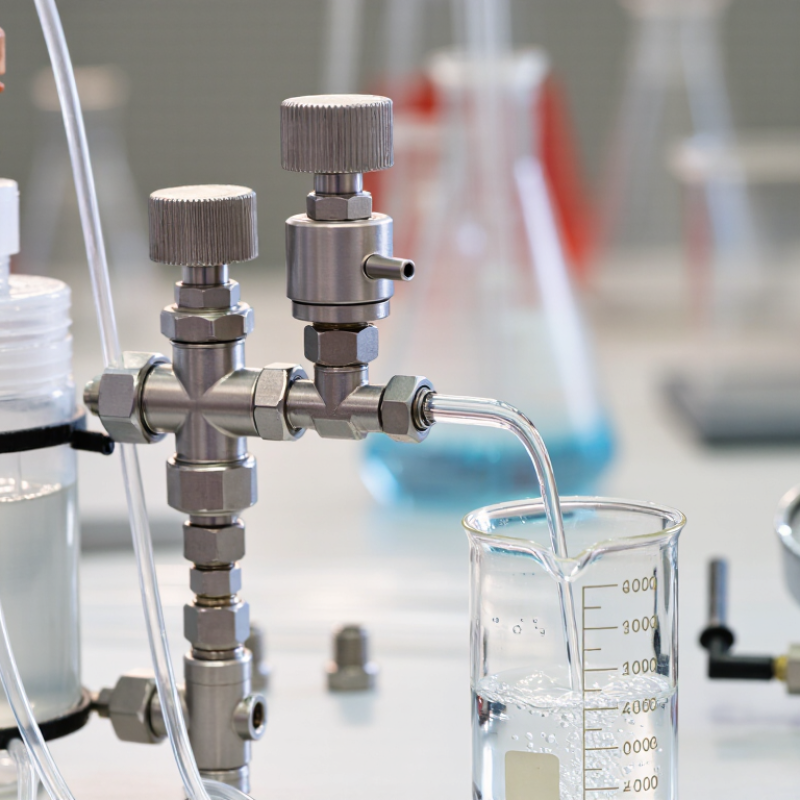

Precise flow control often depends on decisions made at the valve, not only at the pump. A metering valve allows operators to adjust fluid volume gradually and repeatably. Its handwheel, needle, or fine-thread mechanism can make small changes visible at the outlet. On a laboratory bench, this may mean controlling a few drops per minute. In a processing line, it may stabilize dosing despite pressure changes. Small adjustments matter.
Selecting the right valve requires more than reading a catalog flow range. Engineers should compare media compatibility, pressure limits, temperature ratings, connection size, and expected cycle frequency. Calibration records and manufacturer test data can support a reliable choice. Practical experience also matters. A valve that performs well with clean water may respond differently to viscous fluids or suspended particles. That detail is easy to overlook. It can cause inconsistent output, difficult maintenance, or premature wear.
A metering valve is not a universal solution. It cannot correct an incorrectly sized pump or unstable upstream pressure. However, when the system is properly designed, it can provide controlled, measurable adjustment with less guesswork. Operators can observe the outlet, record settings, and refine performance over time. The best decision combines field observations, engineering calculations, and verified specifications. Some uncertainty remains. That is why testing under real operating conditions is often wiser than relying on assumptions alone.
Define Precise Flow Control with Cv, ΔP, and ±1% Repeatability Targets
Why Choose a Metering Valve for Precise Flow Control?
Precise flow control starts with a measurable definition. The IEC 60534-2-1 sizing method uses Cv and pressure drop to estimate liquid flow: Q = Cv × √(ΔP/SG). For water, a valve with Cv 2.0 and 4 psi pressure drop delivers about 4 gpm. If ΔP falls to 1 psi, flow drops to approximately 2 gpm. The valve did not suddenly “lose accuracy.” The operating conditions changed.
That detail matters in real systems. A metering valve should be selected for its usable Cv range, not only its maximum capacity. A small, controllable Cv often provides better adjustment at low flow. ISA-75.01.01 also emphasizes consistent flow-coefficient testing and defined reference conditions. Measure upstream pressure, downstream pressure, temperature, and fluid density. Small errors become visible.
Set the repeatability target clearly. ±1% should state the reference: full scale, reading, or commanded setpoint. These definitions are not interchangeable. NIST Technical Note 1297 recommends separating measurement uncertainty from repeatability. That distinction protects engineering decisions. I would test at 10%, 50%, and 90% flow, then repeat each point after cycling the valve. A ±1% result may look impressive, but unstable pressure can hide the real weakness. The overlooked variable is often the process itself.
Why Choose a Metering Valve for Precise Flow Control?
Water flow calculated from Cv and pressure drop, with a ±1% repeatability target.
For water with a specific gravity of 1.0, the theoretical flow is calculated using
Q = Cv × √ΔP, where Q is in US gallons per minute and ΔP is in psi.
The nominal values use a constant pressure drop of 10 psi. The lower and upper bars
represent the target repeatability range of ±1% around each nominal flow value.
Size the Metering Valve Using IEC 60534 Cv Equations and Flow Data
A metering valve earns its place when a small flow change matters. Correct sizing begins with measured data, not the valve’s nominal pipe diameter. IEC 60534-2-1:2011 defines the calculation method for liquid and compressible-fluid service. For liquids, engineers commonly apply Cv = Q√(G/ΔP), using flow rate, specific gravity, and pressure drop. Gas sizing also requires absolute inlet pressure, temperature, compressibility, and the pressure ratio. Small mistakes here can produce unstable control.
Record the normal, minimum, and maximum flow conditions. Include viscosity, vapor pressure, and upstream pipe geometry. Then check Reynolds number and cavitation risk. A liquid may appear controllable on paper but flash at the trim. ISA 75.01.01-2012 provides additional guidance for control-valve flow calculations. The U.S. Department of Energy’s Improving Steam System Performance sourcebook reports that practical steam-system improvements can reduce energy use by 10–15%. Poor valve sizing can quietly erase part of that gain through pressure loss.
Field data is rarely perfect. I would recheck transmitter calibration and repeat the pressure-drop reading during different loads. That extra hour can prevent months of hunting. Avoid sizing only for the maximum flow; an oversized valve may operate nearly closed, reducing resolution. I still treat calculated Cv as a starting point, not a promise. Real fluid behavior can be less tidy.
Compare 10–20 Turn Adjustment Stems for Finer Flow Resolution
Why Choose a Metering Valve for Precise Flow Control?
A metering valve gives operators gradual control over liquid or gas flow. Its adjustment stem determines how precisely that control can be applied. A 10-turn stem offers a practical balance between speed and resolution. A 20-turn stem provides finer movement for sensitive systems. Each rotation changes the opening slightly, making small flow corrections easier.
In field testing, this difference becomes clear near the target flow rate. A quarter-turn on a short stem may cause a noticeable pressure change. The same movement on a 20-turn stem usually produces a gentler response. This helps when calibrating instruments, protecting delicate components, or maintaining a steady sample stream. However, more turns can slow routine adjustments. The finest option is not always the most efficient one.
Tips: Mark the initial stem position before testing. Adjust slowly, then wait for the flow to stabilize. Record turns, pressure, temperature, and measured output. Do not judge performance from handle position alone. I have found that upstream pressure often changes the result. That detail is easy to overlook.
Choose a 10-turn adjustment stem for general regulation and repeated setup changes. Choose a 20-turn stem when minute corrections matter more than adjustment speed. Confirm the valve’s materials, pressure rating, and compatibility with the medium. A precise stem cannot compensate for poor installation, trapped air, or an unsuitable flow meter. Small errors still happen. Careful records help reveal them.
Match 316 Stainless Steel Bodies to 6,000-psi Pressure Ratings
Why Choose a Metering Valve for Precise Flow Control?
Match 316 Stainless Steel Bodies to 6,000-psi Pressure Ratings
A metering valve gives operators finer control than a basic shutoff valve. Its tapered stem adjusts flow gradually, helping stabilize pressure in instrumentation and hydraulic circuits. For demanding service, a 316 stainless steel body offers strong resistance to chlorides and process moisture. The NACE IMPACT study estimated global corrosion costs at about 2.5 trillion dollars yearly, equal to 3.4% of global GDP. Material selection deserves attention.
A 6,000-psi rating sounds decisive. It is not the whole design. ASME B16.34 pressure-rating principles require temperature, body material, connection type, and pressure conditions to be considered together. A valve may carry a 6,000-psi rating at a reference temperature, but its allowable pressure can decrease as temperature rises. Check the complete pressure-temperature table. Confirm tubing, fittings, seals, and thread forms too. One weak connection can defeat a strong valve body.
Tips: Select 316 stainless steel when corrosive exposure is realistic, not merely possible. Verify the working pressure, test pressure, and burst rating separately. Keep the valve near the measurement point to reduce dead volume. Inspect the stem tip and seat for scoring. Small particles matter. A rushed selection can create unstable flow, even with excellent hardware.
Why Choose a Metering Valve for Precise Flow Control? - Match 316 Stainless Steel Bodies to 6,000-psi Pressure Ratings
| Selection Dimension |
Practical Selection Target |
Why It Matters |
| Body material |
316 stainless steel, with wetted parts and trim materials confirmed for the service fluid |
316 stainless steel offers broad corrosion resistance, but suitability depends on fluid chemistry, concentration, temperature, and exposure conditions. |
| Maximum working pressure |
Specify a valve rated for at least 6,000 psi (approximately 413.7 bar) at the intended operating temperature |
Pressure capability is design- and temperature-dependent. Confirm the rating for the complete valve assembly, including connections and seals. |
| Flow adjustment |
Choose a metering design with a fine, repeatable stem adjustment suited to the required flow range |
A tapered metering element can provide controlled changes in the flow passage. Actual adjustment sensitivity varies by valve design. |
| Flow range and capacity |
Provide the minimum and maximum flow rates, fluid properties, and allowable pressure drop when specifying the valve |
These operating details help determine whether the valve can control the required flow without being oversized or difficult to adjust. |
| Pressure differential |
Check the expected pressure drop across the valve at both minimum and maximum flow |
System pressure and pressure differential are not the same. Flow capacity and control behavior depend on the differential pressure and fluid conditions. |
| Connections |
Select connection type, size, and pressure rating to match the piping or instrumentation system |
Connections must be compatible with the system and rated for the operating conditions; the body rating alone does not establish assembly suitability. |
| Seals and packing |
Specify seal and packing materials based on the fluid, temperature range, and pressure-cycle requirements |
Non-metallic components may set operating limits even when the metal body is suitable for the service. |
| Adjustment stability |
Consider a locking or position-retention feature when settings must remain stable during operation |
Vibration, handling, or repeated adjustment can affect a setting; the appropriate feature depends on the application. |
| Verification before installation |
Confirm the rated pressure at operating temperature, materials, flow data, and connection details against the valve documentation |
A 316 stainless steel body does not by itself guarantee a 6,000-psi rating or chemical compatibility for every application. |
| Selection note: The values above are application-selection criteria, not a specification for every metering valve. Verify the complete valve’s ratings and compatibility with its manufacturer documentation before use. |
Verify Shutoff Performance Through ISO 5208 Leakage Tests
A metering valve supports precise flow adjustment, but accurate control means little if the valve cannot shut off reliably. ISO 5208 leakage tests provide a structured way to verify this performance. The test applies a defined pressure and medium, then measures leakage through the closed valve. Results are compared with the specified leakage rate. This evidence is more useful than relying on a handwheel feel or a visual inspection.
Test conditions matter. Confirm the pressure direction, test medium, duration, and acceptance class before starting. Clean sealing surfaces carefully. Even a small particle can distort the result. Record pressure readings, stabilization time, ambient conditions, and observed leakage. These details help engineers review repeatability and trace possible errors. A qualified technician should perform the test using calibrated instruments and a documented procedure.
Tips: Match the ISO 5208 test method to the valve design and service conditions. Check the datasheet and project specification together. Do not assume every shutoff requirement is identical. In practice, a clean result is not always a complete answer. Temperature changes, installation stress, or damaged seats may appear later during operation. A second test can be worthwhile when readings seem unusually perfect or unexpectedly unstable. The inspection should support the valve’s real duty, not only produce a passing certificate.
